IBC Tote-Scale with Wizard 4000 Advanced Digital Weight Indicator for weighing IBC Tote Bins.
Bulletin 411
IBC Tote Bin Scale
Monitor chemicals stored in and fed from intermediate bulk containers
IBC Tote Scale Brochures
IBC Tote-Scale with Solo G2 Dual Channel Digital Weight Indicator for weighing IBC Tote Bins.
Bulletin 411
IBC Tote-Scale with Solo XT Hydraulic to Digital Weight Indicator for weighing IBC Tote Bins.
Bulletin 411
IBC Tote-Scale with Solo XT Hydraulic to Digital Weight Indicator for weighing IBC Tote Bins.
Bulletin 411
IBC Tote-Scale with Hypo Trak for monitoring Sodium Hypochlorite.
Bulletin 517
IBC Tote Scale Technical Specs
| VESSEL TYPE : | Portable Tote Bins, Stackable Tote Bins, Intermediate Bulk Containers |
| CAPACITY : | Up to 1000 gallons |
| TYPICAL APPLICATIONS : | Polymer * Sodium Hypochlorite * Hydrofluosilicic Acid * Sodium Hydroxide |
IBC Tote Scale General Description
When feeding chemicals such Fluoride, Polymer and Sodium Hypochlorite, it is imperative to have a way to accurately track chemical usages and feed rates. In fact many government regulations require you to document chemical usages and there is no more accurate method than using a weight-based chemical monitoring system.
Compared to intrusive tank level technologies, using a scale is inherently more accurate because a scale operates independent of vessel shape, temperature, corrosive fumes and specific gravity of the chemical. Even more importantly for the operator, since there is no need to place a sensor into the tote or chemical as other technologies require, the chance of operator/chemical contact is greatly reduced. Also, using a scale does not add any time to the tote change out procedure. The empty tote is lifted or rolled off the platform, the new one rolled or forked on, the process plumbing connected and the system is ready to go.
Our heavy duty platform scales come standard with the exclusive chemical resistant Tuf-Coat™ finish or are offered in optional 316 stainless steel. An adjustable backstop on the scale platform allows the tote to be rapidly placed in the same position each time for process connection alignment and optimum scale accuracy.
Combine any of the indicators at the top of this page with the IBC Tote Bin Scale to make a complete monitoring system.
The IBC Tote Scale is compatible with the following indicators:
Wizard 4000 Advanced Digital Weight Indicator. For use with our electronic scales.
Century Dial Hydraulic Weight Indicator. For use with our hydraulic scales.
Solo XT Hydraulic to Electronic Weight Indicator. For use with our hydraulic scales.
IBC Tote Scale Typical Written Specs
IBC Tote Scale Engineered Drawings
IBC Tote Scale Technical Support
For Technical Support, call our FACTORY SERVICE HELP DESK at 1-800-893-6723 (within U.S.) or 925-686-6700.
From the initial writing of a specification through the installation and operation of the equipment, 100% satisfaction is our goal. At FORCE FLOW, we know that a superior customer service and support team is crucial to the success of our customers and the success of our company. Following are some of the services that we offer:
Performance Guarantee
With the purchase of every Force Flow product comes our exclusive Performance Guarantee. If you are unhappy about the performance of one of our products in your chlorination or chemical feed application, you may contact your local distributor and request they begin the restock,refund or exchange process. Under the Performance Guarantee, for 30 days after receiving the product, you may return or exchange it for full purchase price refund or credit towards another Force Flow product. To qualify, all Performance Guarantee refunds or exchanges must be pre-approved by the factory service manager before returning the equipment to the factory.
Warranty WARRANTY STATEMENT.pdf
FORCE FLOW warrants every single one of our products for a period of five years. If a failure occurs within the said period, the warranty extends from the date of FORCE FLOW's shipment, and liability is limited to repayment of the purchase price, repair or replacement of the equipment. All warranty work must be returned to the factory or a center designated by FORCE FLOW.
Service
Our policy is to get all repairs, warranty work and retrofits completed and shipped back to the customer within 48 hours of receiving them at our factory. Trained technicians and a large parts inventory makes this happen. We understand that there is nothing more frustrating than sending something back to the manufacturer and wondering when you will see it again. Two day turnaround—that is our policy! For prompt service, call our FACTORY SERVICE HOTLINE at 1-800-893-6723 (within U.S.) or 925-686-6700.
Technical and Application Support
FORCE FLOW factory engineers have strong technical backgrounds with many years of process weighing experience in both chlorine and chemical feed applications. If you require technical information, application support or help with a custom project, please contact an application engineer at our HELP HOTLINE at 1-800-893-6723.
IBC Tote Scale Image Gallery

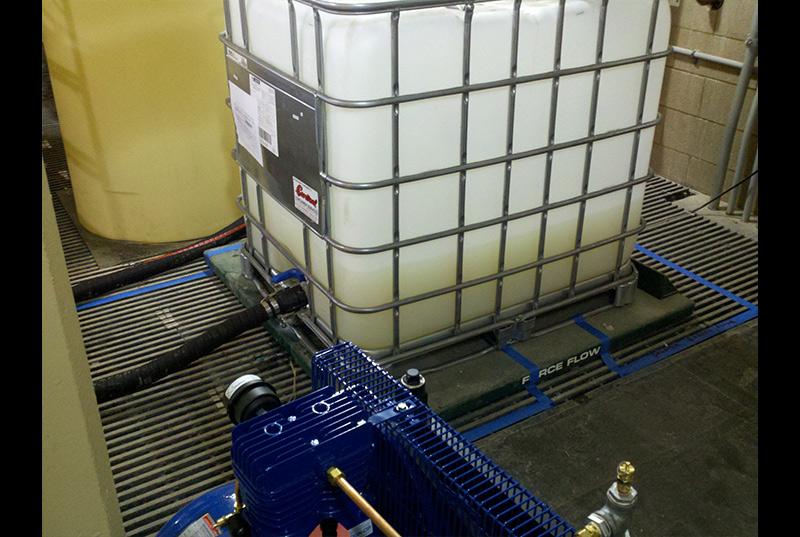

IBC Tote Scale on grated floor
IBC Tote Scale on grated floor

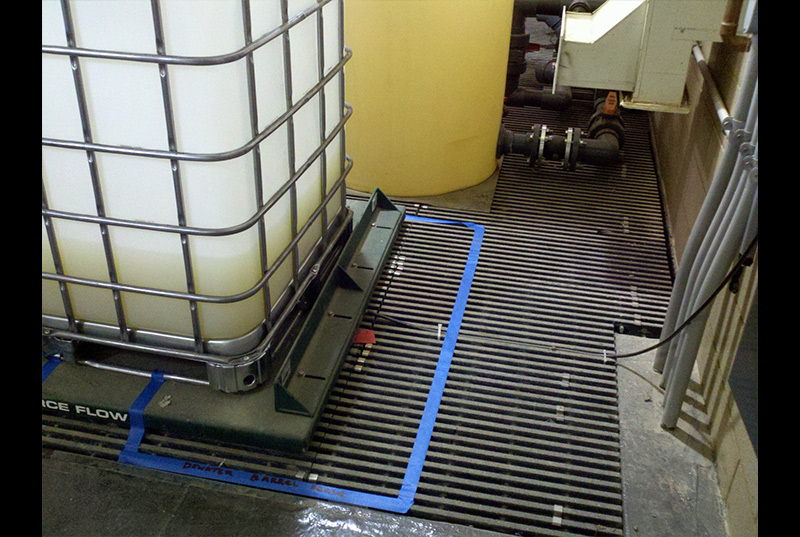

IBC Tote Scale on grated floor
IBC Tote Scale on grated floor

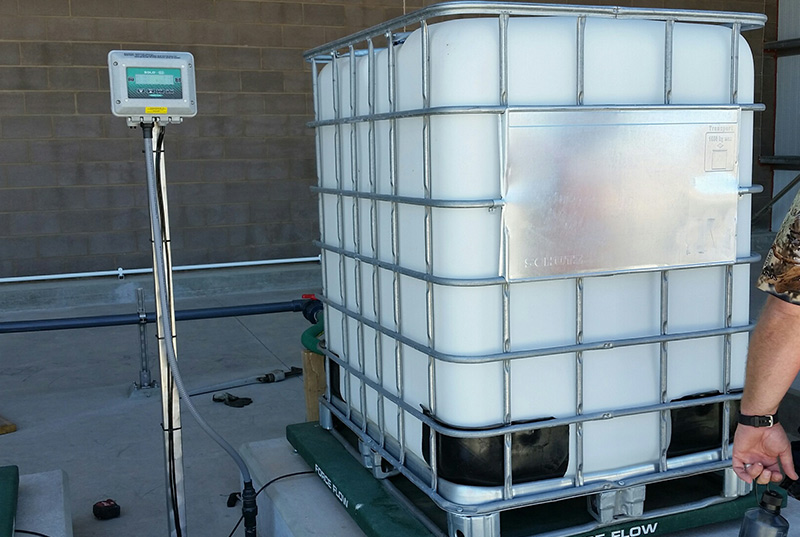

IBC Tote Scales with Solo G2
IBC Tote Scales with Solo G2

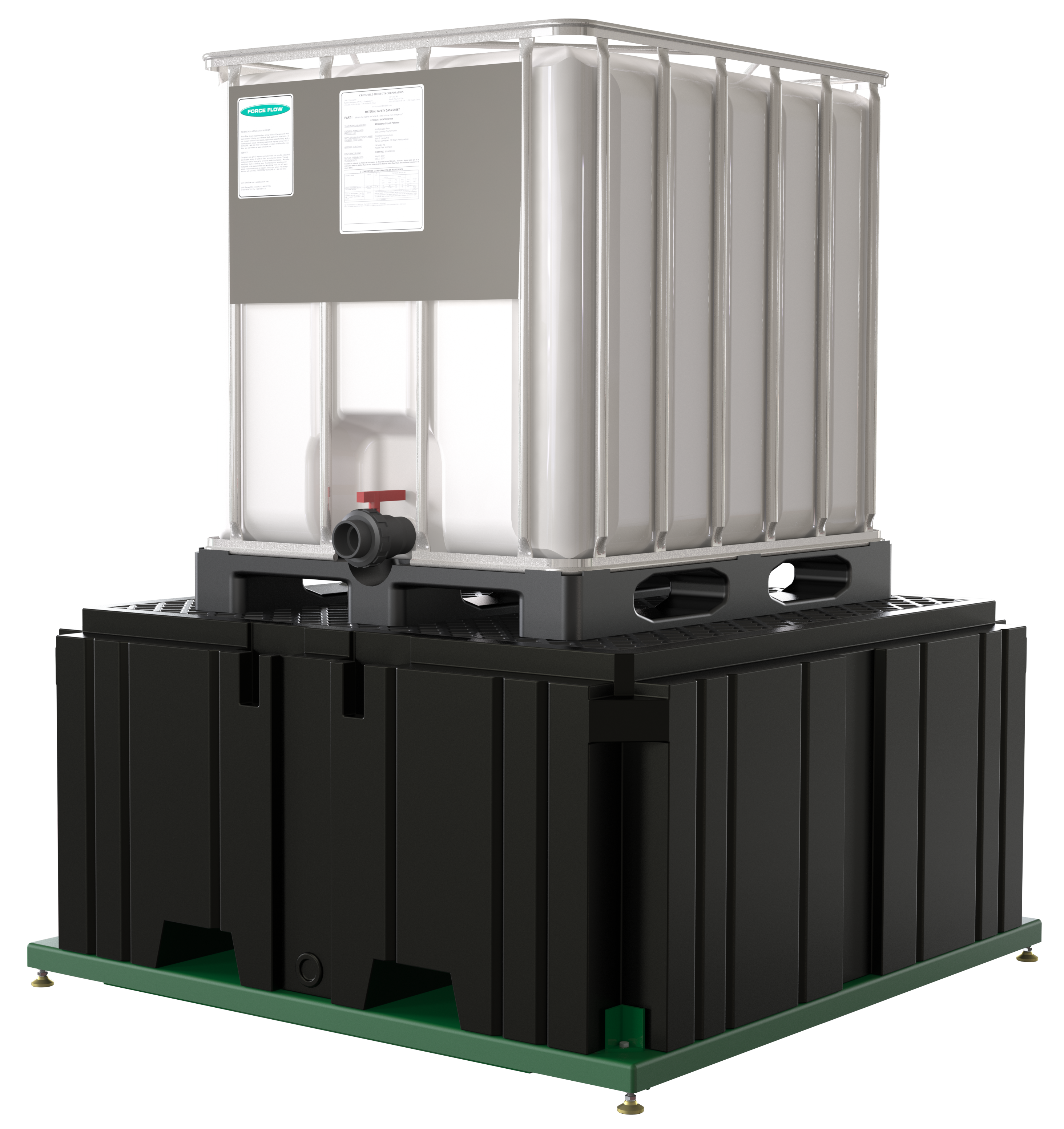

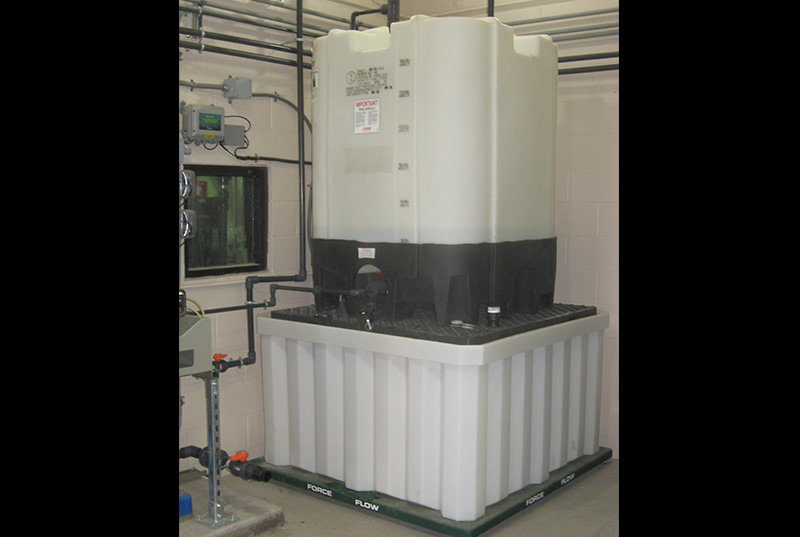

IBC Tote Scales with Spill Containment
IBC Tote Scales with Spill Containment

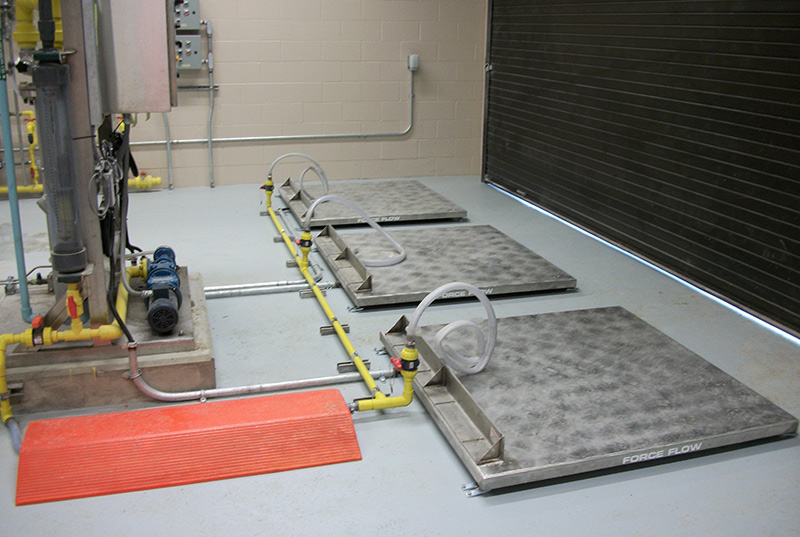

IBC Tote Scales Stainless Steel
IBC Tote Scales Stainless Steel

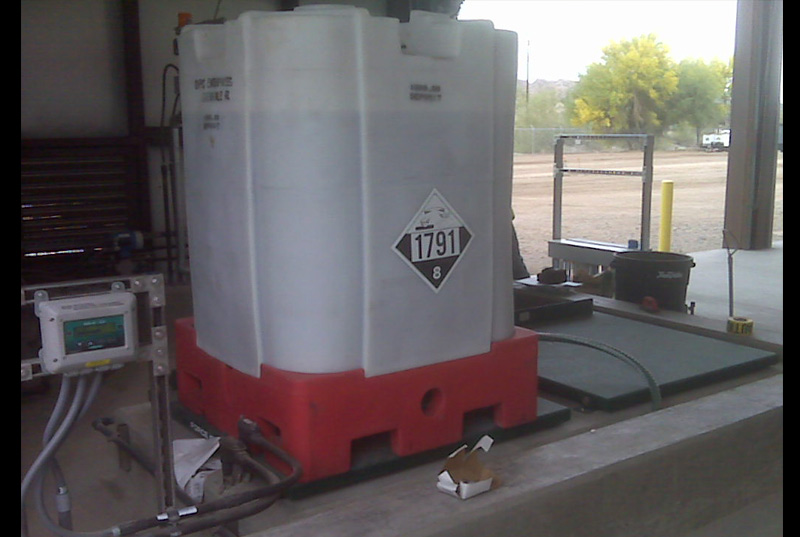

IBC Tote Scales with Solo G2
IBC Tote Scales with Solo G2

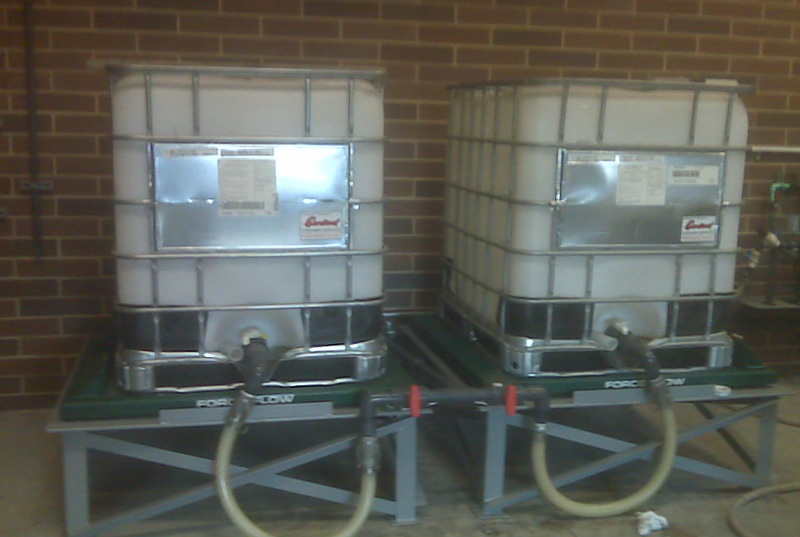

IBC Tote Scales
IBC Tote Scales
View the embedded image gallery online at:
https://forceflowscales.com/85-scales?start=16#sigProId7b86a5d280
IBC Tote Scale Related Items
with integral secondary containment
CHEM-SCALE®
For Chemical Day Tanks and IBC Totes
Chem-Scale Brochures
Chem-Scale with Wizard 4000 Advanced Digital Weight Indicator for weighing stationary day tanks.
Bulletin 404
Chem-Scale with Solo G2 Digital Weight Indicator for weighing stationary day tanks.
Bulletin 404
Chem-Scale with Century Dial Hydraulic Weight Indicator for weighing stationary day tanks.
Bulletin 206
Chem-Scale with Hypo Trak Indicator for monitoring Sodium Hypochlorite.
Bulletin 517
Chem-Scale Technical Specs
| VESSEL TYPE : | Stationary Day Tanks |
| CAPACITY : | 100 to 1000 gallons (400 to 4000 Liters) |
| TYPICAL APPLICATIONS : | Fluoride * Polymer * Sodium Hypochlorite * Caustic * Alum * Sodium Bisulfate |
Chem-Scale General Description
When feeding chemicals, such as Fluoride, Polymer and Sodium Hypochlorite, it is imperative that you have a way of accurately tracking chemical usages and feed rates. In fact, many government regulations require you to document chemical usages, and there is no more accurate method than using a weight based chemical monitoring system.
Compared to intrusive tank level technologies, weight is an inherently more accurate means of measuring level contents because it is independent of vessel shape, temperature, corrosive fumes and specific gravity of the contents. Using the CHEM-SCALE for your inventory management results in an inexpensive, non-contacting, highly reliable method of tracking chemical levels, usages and feed rates.
These heavy-duty platform scales are available with our chemical resistant Tuf-Coat finish or in 316 stainless steel and have adjustable tank anchoring/restraint clips mounted directly to the scale platform.
The restraint clips provide lateral stability and can be used in conjunction with our hold down straps to further secure the tank for extreme protection in the event of a natural disaster such as a flood, earthquake or high winds.
The Chem-Scale is compatible with the following indicators:
Wizard 4000 Advanced Digital Weight Indicator. For use with our electronic scales.
Century Dial Hydraulic Weight Indicator. For use with our hydraulic scales.
Solo XT Hydraulic to Electronic Weight Indicator. For use with our hydraulic scales.
Chem-Scale Typical Written Specs
Chem-Scale Engineered Drawings
Chem-Scale Technical Support
For Technical Support, call our FACTORY SERVICE HELP DESK at 1-800-893-6723 (within U.S.) or 925-686-6700.
From the initial writing of a specification through the installation and operation of the equipment, 100% satisfaction is our goal. At FORCE FLOW, we know that a superior customer service and support team is crucial to the success of our customers and the success of our company. Following are some of the services that we offer:
Performance Guarantee
With the purchase of every Force Flow product comes our exclusive Performance Guarantee. If you are unhappy about the performance of one of our products in your chlorination or chemical feed application, you may contact your local distributor and request they begin the restock,refund or exchange process. Under the Performance Guarantee, for 30 days after receiving the product, you may return or exchange it for full purchase price refund or credit towards another Force Flow product. To qualify, all Performance Guarantee refunds or exchanges must be pre-approved by the factory service manager before returning the equipment to the factory.
Warranty WARRANTY STATEMENT.pdf
FORCE FLOW warrants every single one of our products for a period of five years. If a failure occurs within the said period, the warranty extends from the date of FORCE FLOW's shipment, and liability is limited to repayment of the purchase price, repair or replacement of the equipment. All warranty work must be returned to the factory or a center designated by FORCE FLOW.
Service
Our policy is to get all repairs, warranty work and retrofits completed and shipped back to the customer within 48 hours of receiving them at our factory. Trained technicians and a large parts inventory makes this happen. We understand that there is nothing more frustrating than sending something back to the manufacturer and wondering when you will see it again. Two day turnaround—that is our policy! For prompt service, call our FACTORY SERVICE HOTLINE at 1-800-893-6723 (within U.S.) or 925-686-6700.
Technical and Application Support
FORCE FLOW factory engineers have strong technical backgrounds with many years of process weighing experience in both chlorine and chemical feed applications. If you require technical information, application support or help with a custom project, please contact an application engineer at our HELP HOTLINE at 1-800-893-6723.
Chem-Scale Image Gallery
Brine Tank with Solo G2
Brine Tank with Solo G2
Caustic Chemical Scale with Wizard
Caustic Chemical Scale with Wizard
Chemical Scale
Chemical Scale
Chemical Scale Stainless Steel
Chemical Scale Stainless Steel
Chemical Scale with Solo G2
Chemical Scale with Solo G2
Chemical Scale with Solo
Chemical Scale with Solo
Chemical Scale with Wizard
Chemical Scale with Wizard
Chemical Scale with Wizard
Chemical Scale with Wizard
Chemical Scale with Wizard
Chemical Scale with Wizard
Chemical Scale with Wizard
Chemical Scale with Wizard
Chemical Scale with Wizard
Chemical Scale with Wizard
Chemical Scale
Chemical Scale
Chemical Scales Side by Side
Chemical Scales Side by Side
Hydraulic Chemical Scale
Hydraulic Chemical Scale
Hydraulic Chemical Scale
Hydraulic Chemical Scale
Large Chemical Scale Stainless Steel with Wizard
Large Chemical Scale Stainless Steel with Wizard
Large Chemical Scale with Solo G2
Large Chemical Scale with Solo G2
View the embedded image gallery online at:
https://forceflowscales.com/85-scales?start=16#sigProId84fc622836
Chem-Scale Related Items
 |
 |
 |
|
| Stainless Steel | Tuf-Coat | Tuf-Coat Specs | |
CHLOR-SCALE™ 150
Cylinder Scales for 150 lb Chlorine Cylinders, Sulfur Dioxide Cylinders and Ammonia Cylinders
The Chlor-Scale 150 Brochures
Chlor-Scale 150 with Wizard 4000 for weighing 150 lb cylinders containing chlorine or SO2.
Bulletin 407
Chlor-Scale 150 with Solo G2 for weighing 150 lb cylinders containing chlorine or SO2.
Bulletin 407
Chlor-Scale 150 with Solo XT for weighing 150 lb cylinders containing chlorine or SO2.
Bulletin 204
Chlor-Scale 150 with Century Dial for weighing 150 lb cylinders containing chlorine or SO2.
Bulletin 204
Ammonia-Scale 150 with Wizard 4000 for weighing 150 lb cylinders containing Ammonia.
Bulletin 416
Ammonia-Scale 150 with Solo G2 for weighing 150 lb cylinders containing Ammonia.
Bulletin 416
Chlor-Scale 150 Technical Specs
| VESSEL TYPE : | Chlorine, Ammonia & Sulphur Dioxide gas cylinders. Models for banks of up to 6 cylinders |
| CAPACITY : | Up to 200 lbs (100 kgs) net per cylinder, 400 lbs (200 kgs) gross per cylinde |
| TYPICAL APPLICATIONS : | Chlorine * Sulfur Dioxide * Ammonia * Freon * Hydrochloric Acid |
| MATERIAL : | 100% solid PVC plastic deck with stainless steel hardware |
| CABLE/TUBING LENGTH : | 10-200 feet available (3-65 meters available) |
| CHAINING BRACKET : | Included with each platform |
| SYSTEM ACCURACY : | 0.5 -1% Full Scale |
| WARRANTY : | 5 Year |
Chlor-Scale 150 General Description
When we launched the CHLOR-SCALE 150 in 1993, we changed the way the world weighs chlorine gas cylinders. Up until then, mechanical and electronic chlorine cylinder scales, ammonia cylinder scales and SO2 cylinder scales were not designed with the user in mind. They were hard to repair, remote mounted indicators were not available, and the scales required replacement every year or two due to corrosion. We took our 25 years of hydraulic scale manufacturing experience and created the first ever hydraulic chlorine cylinder scale.
We designed the CHLOR-SCALE 150 specifically to weigh chlorine gas, sulfur dioxide & ammonia cylinders used in small treatment plants, well heads, booster stations and at industrial plants. A low overall height of less than 1-7/8 inches (4.7 cm) allows cylinders to be easily rolled on and off the scale platform without lifting and our included wall-mounted chaining bracket provides the safest possible installation by securing the cylinder to the building structure itself.
Optional remote mounted indicators (up to 25') provide operators with an added level of convenience and safety by preventing unnecessary entry into the chlorine building. The CHLOR-SCALE 150 has a 100% solid PVC platform and the few fasteners and fittings are corrosion resistant. This makes our cylinder scale survive for years and years without any damage from corrosion, UV light, impact or abrasion. Our incredibly simple "pivoted platform" design has no moving parts either. This means that there are no flexures, levers or mechanical links that are susceptible to corrosion, bending or breaking.
We can combine any of our hydraulic and electronic indicators with the Chlor-Scale 150 making it possible to create a cylinder scale that gives you exactly what your application requires.
A full 5-year warranty backs each and every CHLOR-SCALE 150 including the platform, load cell and indicator. Buying a CHLOR-SCALE 150 gas cylinder scale means you are buying the original and the best!
The Chlor-Scale 150 is compatible with the following indicators
Wizard 4000 Advanced Digital Weight Indicator. For use with our electronic scales.
Century Dial Hydraulic Weight Indicator. For use with our hydraulic scales.
Chlor-Scale 150 Typical Written Specs
Chlor-Scale 150 Engineered Drawings
Chlor-Scale 150 Technical Support
For Technical Support, call our FACTORY SERVICE HELP DESK at 1-800-893-6723 (within U.S.) or 925-686-6700.
From the initial writing of a specification through the installation and operation of the equipment, 100% satisfaction is our goal. At FORCE FLOW, we know that a superior customer service and support team is crucial to the success of our customers and the success of our company. Following are some of the services that we offer:
Performance Guarantee
With the purchase of every Force Flow product comes our exclusive Performance Guarantee. If you are unhappy about the performance of one of our products in your chlorination or chemical feed application, you may contact your local distributor and request they begin the restock,refund or exchange process. Under the Performance Guarantee, for 30 days after receiving the product, you may return or exchange it for full purchase price refund or credit towards another Force Flow product. To qualify, all Performance Guarantee refunds or exchanges must be pre-approved by the factory service manager before returning the equipment to the factory.
Warranty WARRANTY STATEMENT.pdf
FORCE FLOW warrants every single one of our products for a period of five years. If a failure occurs within the said period, the warranty extends from the date of FORCE FLOW's shipment, and liability is limited to repayment of the purchase price, repair or replacement of the equipment. All warranty work must be returned to the factory or a center designated by FORCE FLOW.
Service
Our policy is to get all repairs, warranty work and retrofits completed and shipped back to the customer within 48 hours of receiving them at our factory. Trained technicians and a large parts inventory makes this happen. We understand that there is nothing more frustrating than sending something back to the manufacturer and wondering when you will see it again. Two day turnaround—that is our policy! For prompt service, call our FACTORY SERVICE HOTLINE at 1-800-893-6723 (within U.S.) or 925-686-6700.
Technical and Application Support
FORCE FLOW factory engineers have strong technical backgrounds with many years of process weighing experience in both chlorine and chemical feed applications. If you require technical information, application support or help with a custom project, please contact an application engineer at our HELP HOTLINE at 1-800-893-6723.
Chlor-Scale 150 Image Gallery
Chlorine 150 lb Cylinder Scales
Chlorine 150 lb Cylinder Scales
Chlorine 150 lb Cylinder Scales with Solo G2
Chlorine 150 lb Cylinder Scales with Solo G2
Chlorine 150 lb Cylinder Scales with Solo G2-1
Chlorine 150 lb Cylinder Scales with Solo G2-1
Chlorine 150 lb Cylinder Scales with Century Dial
Chlorine 150 lb Cylinder Scales with Century Dial
Chlorine 150 lb Cylinder Scales with Solo G2-2
Chlorine 150 lb Cylinder Scales with Solo G2-2
Chlorine 150 lb Cylinder Scales with Emergency Shutoff Valve
Chlorine 150 lb Cylinder Scales with Emergency Shutoff Valve
View the embedded image gallery online at:
https://forceflowscales.com/85-scales?start=16#sigProId40f760a10d
Chlor-Scale 150 Related Items
|
Pedestal with Chaining Bracket | |
Cylinder 150 Ramp |
|
Cylinder Chaining Bracket | |
Cylinder Gas Cabinet Platform |
CHLOR-SCALE®
Chlorine Tank Scale for Ton Containers
Chlor-Scale General Description
Today, after almost 50 years and over 25,000 units installed worldwide, the Chlor-Scale® continues to be the most durable and reliable chlorine scale available for monitoring chlorine ton containers and sulfur dioxide ton containers. Our chlorine ton container scale frames are built of heavy-duty Grade ASTM A36 steel and then coated with a 2-part epoxy powder coat finish. UHMW Polyethylene or Zinc plated steel roller trunnions safely cradle the chlorine ton container and allow easy rotation of the tank for correct valve positioning.
The unique pivoted design of the Chlor-Scale requires only a single load cell, increasing scale reliability. The design also distributes the majority of impact during tank loading to massive steel hinges instead of to the load cell, adding even further to the durability of our chlorine scales.
Unlike other chlorine scales, the Chlor-Scale comes pre-calibrated and installation is extremely simple with no pit or special installation personnel required. The Chlor-Scale accommodates most international chlorine drum sizes including tanks and chlorine drums with roller bands.
4-20mA outputs allow real time chemical status to be viewed from your PLC or computer and other options include low-level alarm relays, tank restraining straps or chains, and chart recorders. Chlor-Scale models are available for monitoring up to six manifolded chlorine ton containers.
We pioneered this application and we perfected it. Backed by our unprecedented Performance Guarantee, buying a Chlor-Scale ton container scale means you are buying the most experienced chlorine scale in the water treatment industry.
Chlor-Scale Technical Specs
| VESSEL TYPE : | Chlorine Ton Containers and Drums, 1-6 tank units |
| CAPACITY : | Up to 2000 lbs (1000 kgs) net per tank, 4000 lbs (2000 kgs) gross per tank |
| TYPICAL APPLICATIONS : | Chlorine * Sulfur Dioxide * Ammonia * Freon * Hydrochloric Acid |
| MATERIAL : | ASTM GRADE A36 Steel |
| COATING : | 2-Part Epoxy Powder Coat |
| CABLE/TUBING LENGTH : | 10-200 feet available (3-65 meters available) |
| ROLLER TRUNNIONS : | UHMW Polyethylene wheels with stainless steel pins (optional steel wheels) |
| SYSTEM ACCURACY : | 1/4 of 1% Full Scale |
| WARRANTY : | 5 Year |
The Chlor-Scale is compatible with the following indicators:
 |
 |
 |
 |
| Solo G2 | Wizard 4000 | Century Dial | Solo XT |
Chlor-Scale Typical Written Specs
Chlor-Scale Engineered Drawings
Chlor-Scale Brochures
Chlor-Scale Technical Support
For Technical Support, call our FACTORY SERVICE HELP DESK at 1-800-893-6723 (within U.S.) or 925-686-6700.
From the initial writing of a specification through the installation and operation of the equipment, 100% satisfaction is our goal. At FORCE FLOW, we know that a superior customer service and support team is crucial to the success of our customers and the success of our company. Following are some of the services that we offer:
Performance Guarantee
With the purchase of every Force Flow product comes our exclusive Performance Guarantee. If you are unhappy about the performance of one of our products in your chlorination or chemical feed application, you may contact your local distributor and request they begin the restock,refund or exchange process. Under the Performance Guarantee, for 30 days after receiving the product, you may return or exchange it for full purchase price refund or credit towards another Force Flow product. To qualify, all Performance Guarantee refunds or exchanges must be pre-approved by the factory service manager before returning the equipment to the factory.
Warranty WARRANTY STATEMENT.pdf
FORCE FLOW warrants every single one of our products for a period of five years. If a failure occurs within the said period, the warranty extends from the date of FORCE FLOW's shipment, and liability is limited to repayment of the purchase price, repair or replacement of the equipment. All warranty work must be returned to the factory or a center designated by FORCE FLOW.
Service
Our policy is to get all repairs, warranty work and retrofits completed and shipped back to the customer within 48 hours of receiving them at our factory. Trained technicians and a large parts inventory makes this happen. We understand that there is nothing more frustrating than sending something back to the manufacturer and wondering when you will see it again. Two day turnaround—that is our policy! For prompt service, call our FACTORY SERVICE HOTLINE at 1-800-893-6723 (within U.S.) or 925-686-6700.
Technical and Application Support
FORCE FLOW factory engineers have strong technical backgrounds with many years of process weighing experience in both chlorine and chemical feed applications. If you require technical information, application support or help with a custom project, please contact an application engineer at our HELP HOTLINE at 1-800-893-6723.
Chlor-Scale Image Gallery
Chlorine Dual Ton Container Scales
Chlorine Dual Ton Container Scales
Chlorine Dual Ton Container Scales with Solo G2
Chlorine Dual Ton Container Scales with Solo G2
Chlorine Dual Ton Container Scales with Solo
Chlorine Dual Ton Container Scales with Solo
Chlorine Dual Ton Container Scales
Chlorine Dual Ton Container Scales
Chlorine Ton Container Scale Cart
Chlorine Ton Container Scale Cart
Chlorine Ton Container Scale with Emergency Shutoff Valve
Chlorine Ton Container Scale with Emergency Shutoff Valve
Chlorine Ton Container Scale with Wizard 4000
Chlorine Ton Container Scale with Wizard 4000
Chlorine Ton Container Scales with Century Dial
Chlorine Ton Container Scales with Century Dial
Chlorine Ton Container Scales with Wizard 4000
Chlorine Ton Container Scales with Wizard 4000
Chlorine Ton Container Scales
Chlorine Ton Container Scales
View the embedded image gallery online at:
https://forceflowscales.com/85-scales?start=16#sigProIdb2a6152c1c
